Caps

Secure closure and pressure resistance for piping systems
• Reliable sealing of pipe ends
• Uniform stress distribution under pressure
• Suitable for full-penetration welded
connections
• Compliance with EN and ASME standards
• Carbon steel construction for mechanical
durability

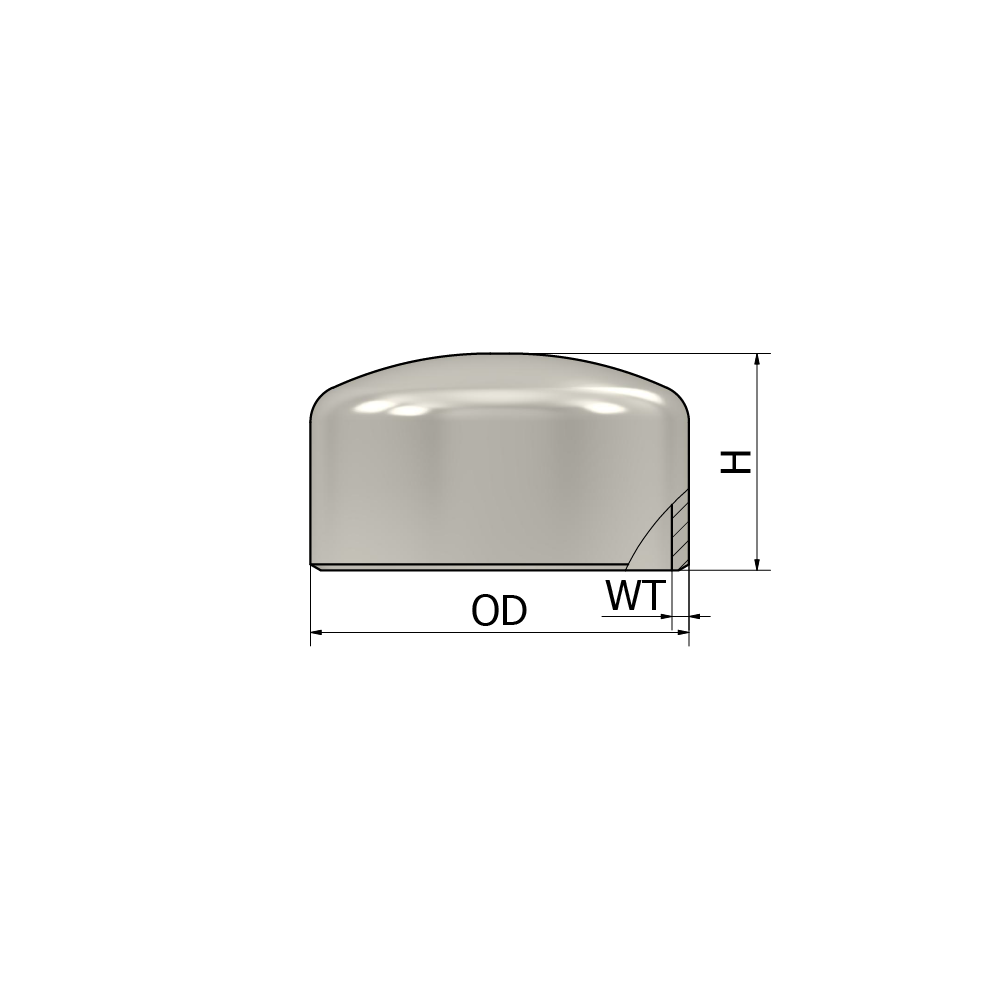

Hide all dimensions Show all dimensions
Standard
DN
OD
WT
H
m
EN 10253-2
25
33.7
2.6
25
0.09
EN 10253-2
25
33.7
3.2
25
0.11
EN 10253-2
25
33.7
3.6
25
0.12
EN 10253-2
32
42.4
2.6
38
0.10
EN 10253-2
32
42.4
3.6
37
0.14
EN 10253-2
32
42.4
4
38
0.16
EN 10253-2
40
48.3
2.6
38
0.17
EN 10253-2
40
48.3
3.6
38
0.17
EN 10253-2
40
48.3
4
38
0.19
EN 10253-2
50
60.3
2.9
36
0.17
EN 10253-2
50
60.3
3.6
38
0.23
EN 10253-2
50
60.3
4
38
0.23
EN 10253-2
65
76.1
2.9
38
0.24
EN 10253-2
65
76.1
3.6
38
0.30
EN 10253-2
65
76.1
5.6
38
0.46
EN 10253-2
80
88.9
3.2
51
0.38
EN 10253-2
80
88.9
4
51
0.47
EN 10253-2
80
88.9
4.5
51
0.47
EN 10253-2
80
88.9
5.6
51
0.66
EN 10253-2
100
114.3
3.6
64
0.70
EN 10253-2
100
114.3
4
64
0.70
EN 10253-2
100
114.3
4.5
64
0.70
EN 10253-2
100
114.3
5
64
0.70
EN 10253-2
100
114.3
5.6
64
0.70
EN 10253-2
100
114.3
6.3
64
1.17
EN 10253-2
125
139.7
4
76
1.21
EN 10253-2
125
139.7
4.5
76
1.21
EN 10253-2
125
139.7
5
76
1.21
EN 10253-2
125
139.7
5.6
76
1.21
EN 10253-2
125
139.7
6.3
76
1.91
EN 10253-2
150
168.3
4.5
89
1.84
EN 10253-2
150
168.3
5.6
89
2.29
EN 10253-2
150
219.1
6.3
102
4.09
EN 10253-2
200
219.1
7.1
102
4.61
EN 10253-2
200
219.1
8
102
5.19
EN 10253-2
250
273
6.3
127
6.22
ASME B16.9
1"
33.4
3.38 (STD / 40)
38
0.11
ASME B16.9
1¼"
42.2
3.56 (STD / 40)
38
0.14
ASME B16.9
1½"
48.3
3.68 (STD / 40)
38
0.17
ASME B16.9
2"
60.3
3.91 (STD / 40)
38
0.23
ASME B16.9
2"
60.3
4.5 (STD / 40)
38
0.33
ASME B16.9
3"
88.9
5.49 (STD / 40)
51
0.66
ASME B16.9
4"
114.3
6.02 (STD / 40)
64
1.17
ASME B16.9
5"
141.3
6.55 (STD / 40)
76
1.93
ASME B16.9
6"
168.3
7.11 (STD / 40)
89
2.9
ASME B16.9
8"
219.1
6.35 (20)
102
4.09
ASME B16.9
8"
219.1
8.18 (STD / 40)
102
5.19
ASME B16.9
10"
273
6.35 (20)
127
6.22
