Elbows model 3d

High-performance long radius elbows for low to high pressure applications
Long radius carbon steel elbows are engineered to provide smooth flow redirection and reduced pressure loss in piping systems operating under low to high pressure conditions. Their optimized geometry minimizes turbulence and mechanical stress, contributing to increased system efficiency and reliability.

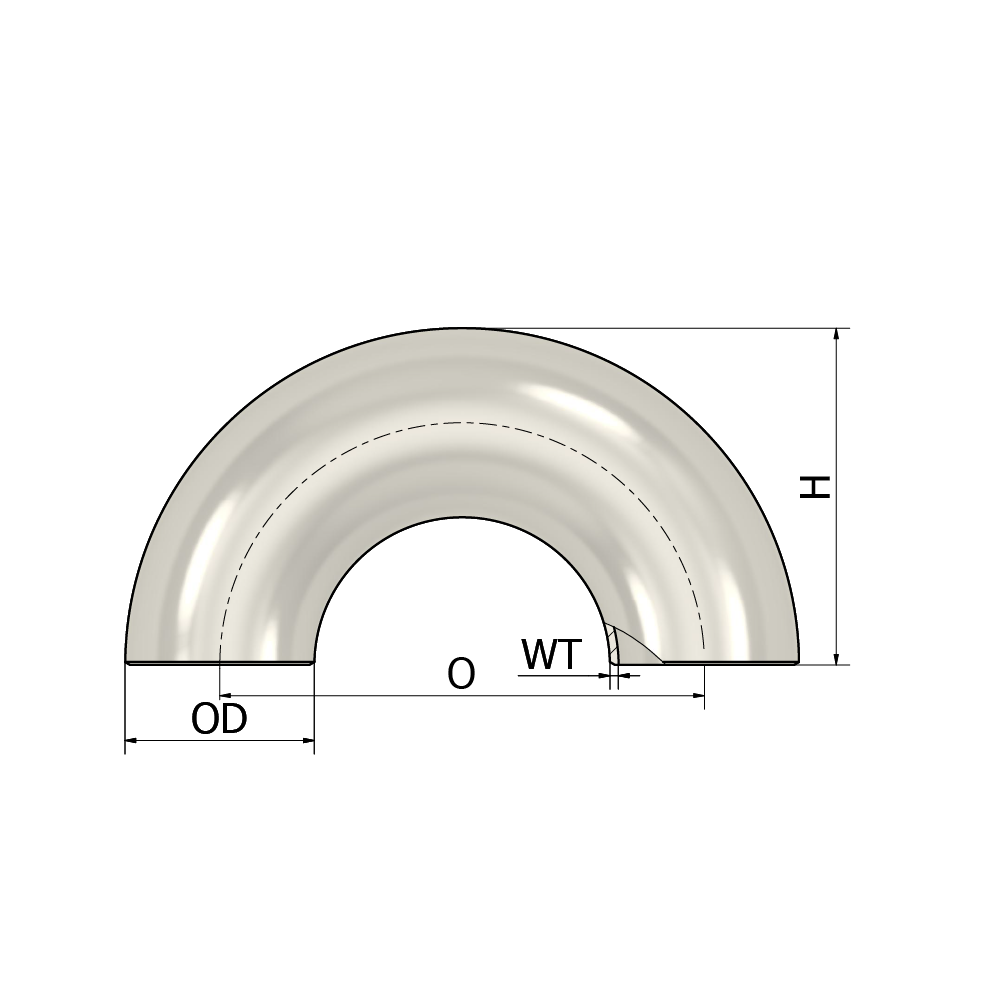

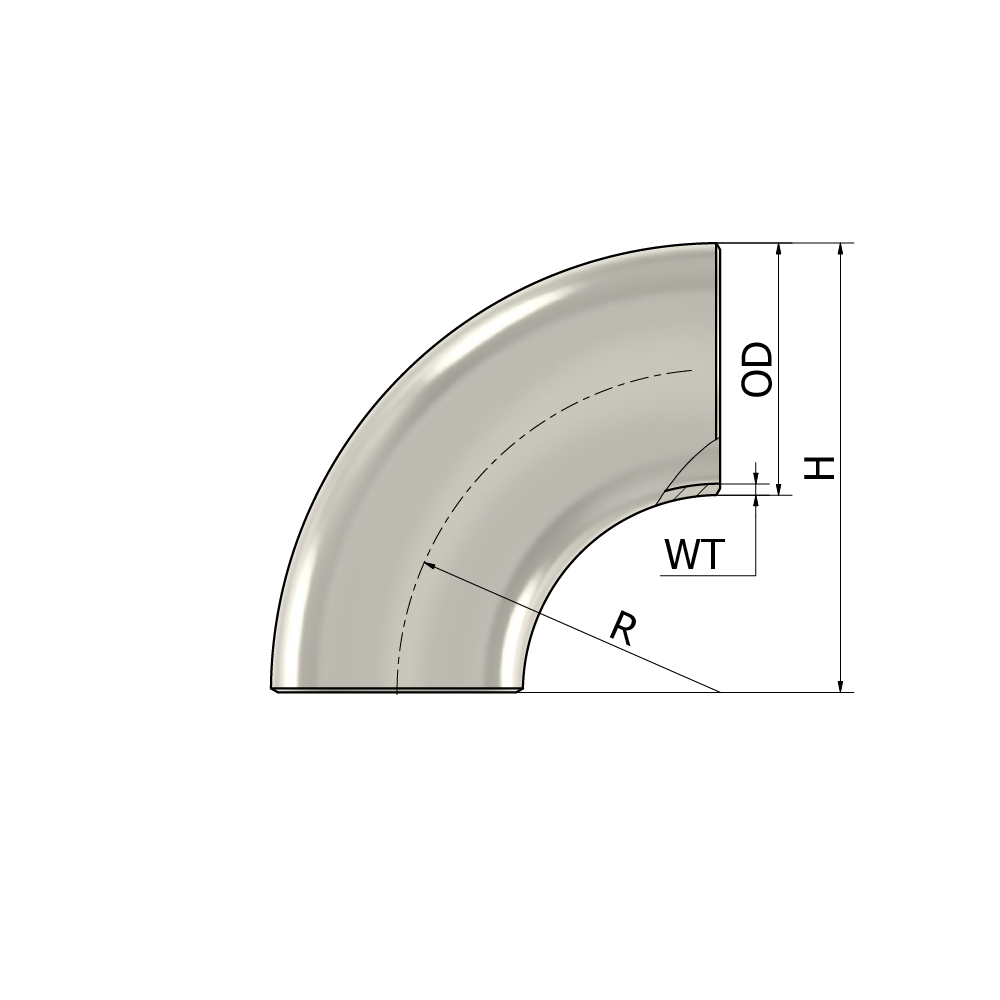

Hide all dimensions Show all dimensions
Standard
DN
OD
WT
R
O
H
m
EN10253-2
25
33.7
2.6
38
76
56
0.12
EN10253-2
25
33.7
2.9
38
76
55
0.13
EN10253-2
25
33.7
3.2
38
76
55
0.14
EN10253-2
25
33.7
3.6
38
76
56
0.16
EN10253-2
25
33.7
4
38
76
56
0.18
EN10253-2
25
33.7
4.5
38
76
56
0.19
EN10253-2
25
33.7
5
38
76
56
0.21
EN10253-2
32
42.4
2.6
48
96
69
0.19
EN10253-2
32
42.4
2.9
48
96
69
0.21
EN10253-2
32
42.4
3.2
48
96
69
0.23
EN10253-2
32
42.4
36
48
96
69
0.26
EN10253-2
32
42.4
4
48
96
69
0.29
EN10253-2
32
42.4
4.5
48
96
69
0.32
EN10253-2
32
42.4
5
48
96
69
0.35
EN10253-2
40
48.3
2.6
57
114
82
0.26
EN10253-2
40
48.3
2.9
57
114
82
0.29
EN10253-2
40
48.3
3.2
57
114
82
0.32
EN10253-2
40
48.3
3.6
57
114
82
0.36
EN10253-2
40
48.3
4
57
114
82
0.39
EN10253-2
40
48.3
4.5
57
114
82
0.44
EN10253-2
40
48.3
5
57
114
82
0.49
EN10253-2
40
48.3
5.6
57
114
82
0.53
EN10253-2
40
48.3
6.3
57
114
82
0.59
EN10253-2
50
60.3
3.2
76
152
106
0.49
EN10253-2
50
60.3
3.2
76
152
106
0.54
EN10253-2
50
60.3
3.6
76
152
106
0.60
EN10253-2
50
60.3
4
76
152
106
0.67
EN10253-2
50
60.3
4.5
76
152
106
0.74
EN10253-2
50
60.3
5
76
152
106
0.82
EN10253-2
50
60.3
5.6
76
152
106
0.90
EN10253-2
50
60.3
6.3
76
152
106
1.01
EN10253-2
50
60.3
7.1
76
152
106
1.12
EN10253-2
50
60.3
8
76
152
106
1.24
EN10253-2
50
60.3
8.8
76
152
106
1.34
EN10253-2
65
76.1
2.9
95
190
133
0.78
EN10253-2
65
76.1
3.2
95
190
133
0.86
EN10253-2
65
76.1
3.6
95
190
133
0.96
EN10253-2
65
76.1
4
95
190
133
1.07
EN10253-2
65
76.1
4.5
95
190
133
1.19
EN10253-2
65
76.1
5
95
190
133
1.31
EN10253-2
65
76.1
5.6
95
190
133
1.46
EN10253-2
80
88.9
3.2
114
228
159
1.22
EN10253-2
80
88.9
3.6
114
228
159
1.36
EN10253-2
80
88.9
4
114
228
159
1.51
EN10253-2
80
88.9
4.5
114
228
159
1.68
EN10253-2
80
88.9
5
114
228
159
1.86
EN10253-2
80
88.9
5.6
114
228
159
2.07
EN10253-2
80
88.9
6.3
114
228
159
2.31
EN10253-2
80
88.9
7.1
114
228
159
2.58
EN10253-2
80
88.9
8
114
228
159
2.87
EN10253-2
100
108
3.6
142.5
285
196
2.08
EN10253-2
100
108
4
142.5
285
196
2.31
EN10253-2
100
108
4.5
142.5
285
196
2.58
EN10253-2
100
114.3
3.6
152
304
210
2.36
EN10253-2
100
114.3
4
152
304
210
2.61
EN10253-2
100
114.3
4.5
152
304
210
2.92
EN10253-2
100
114.3
5
152
304
210
3.23
EN10253-2
100
114.3
5.6
152
304
209
3.60
EN10253-2
100
114.3
6.3
152
304
210
4.02
EN10253-2
100
114.3
7.1
152
304
210
4.50
EN10253-2
100
114.3
8
152
304
210
5.03
EN10253-2
100
114.3
8.8
152
304
210
5.50
EN10253-2
100
114.3
10
152
304
210
6.17
EN10253-2
100
114.3
11
152
304
210
6.79
EN10253-2
100
114.3
12.5
152
304
210
7.52
EN10253-2
125
133
4
181
362
247
3.63
EN10253-2
125
133
5
181
362
247
4.51
EN10253-2
125
133
5.6
181
362
247
5.02
EN10253-2
125
133
6.3
181
362
247
5.62
EN10253-2
125
139.7
4
190
380
260
4.00
EN10253-2
125
139.7
4.5
190
380
260
4.50
EN10253-2
125
139.7
5
190
380
260
4.98
EN10253-2
125
139.7
5.6
190
380
260
5.55
EN10253-2
125
139.7
6.3
190
380
260
6.52
EN10253-2
125
139.7
7.1
190
380
260
6.96
EN10253-2
125
139.7
8
190
380
260
7.80
EN10253-2
125
139.7
8.8
190
380
260
8.50
EN10253-2
125
139.7
10
190
380
260
9.60
EN10253-2
125
139.7
11
190
380
260
10.46
EN10253-2
125
139.7
12.5
190
380
260
12.07
EN10253-2
150
159
4.5
216
432
295
5.84
EN10253-2
150
159
5.6
216
432
295
7.22
EN10253-2
150
159
6.3
216
432
295
8.08
EN10253-2
150
168.3
4
229
457
313
5.85
EN10253-2
150
168.3
4
229
457
313
5.85
EN10253-2
150
168.3
4.5
229
457
313
6.57
EN10253-2
150
168.3
5.6
229
457
313
8.12
EN10253-2
150
168.3
6.3
229
457
313
9.10
EN10253-2
150
168.3
7.1
229
457
313
10.20
EN10253-2
150
168.3
8
229
457
313
11.42
EN10253-2
150
168.3
8.8
229
457
313
12.50
EN10253-2
150
168.3
10
229
457
313
14.10
EN10253-2
150
168.3
11
229
457
313
15.40
EN10253-2
150
168.3
12.5
229
457
313
17.35
EN10253-2
200
219.1
6.3
305
610
414
15.90
EN10253-2
200
219.1
7.1
305
610
414
17.86
EN10253-2
200
219.1
8
305
610
414
20.00
EN10253-2
200
219.1
8.8
305
610
414
21.95
EN10253-2
200
219.1
10
305
610
414
24.80
EN10253-2
200
219.1
11
305
610
414
27.16
EN10253-2
200
219.1
12.5
305
610
414
31.10
EN10253-2
250
273
6.3
381
762
518
25.00
EN10253-2
250
273
7.1
381
762
518
27.90
EN10253-2
250
273
8
381
762
518
31.42
EN10253-2
250
273
8.8
381
762
518
34.45
EN10253-2
250
273
10
381
762
518
39
EN10253-2
250
273
11
381
762
518
42.71
EN10253-2
250
273
12.5
381
762
518
49.00
ASME B16.9
1"
33.4
3.38 (STD / 40)
38
76
56
0.15
ASME B16.9
1"
33.4
4.55 (XS / 80)
38
76
56
0.19
ASME B16.9
1¼"
42.2
3.56 (STD / 40)
48
95
70
0.26
ASME B16.9
1¼"
42.2
4.85 (XS / 80)
48
95
70
0.34
ASME B16.9
1½"
48.3
3.68 (STD / 40)
57
114
83
0.36
ASME B16.9
1½"
48.3
5.08( XS /80)
57
114
83
0.49
ASME B16.9
2"
60.3
3.91 (STD / 40)
76
152
106
0.67
ASME B16.9
2"
60.3
5.54 (XS / 80)
76
152
106
0.90
ASME B16.9
2½"
73
5.16 (STD / 40)
95
190
132
1.29
ASME B16.9
2½"
73
7.01
95
190
132
1.71
ASME B16.9
3"
88.9
5.49 (STD / 40)
114
229
159
2.07
ASME B16.9
3"
88.9
7.62 (XS / 80)
114
229
159
2.87
ASME B16.9
4"
114.3
6.02 (STD / 40)
152
305
210
3.85
ASME B16.9
4"
114.3
8.56 (XS / 80)
152
305
210
5.50
ASME B16.9
4"
114.3
11.13 (120)
152
305
210
6.79
ASME B16.9
5"
141.3
6.55 (STD / 40)
190
381
262
6.52
ASME B16.9
5"
141.3
9.53 (XS / 80)
190
381
262
9.28
ASME B16.9
5"
141.3
12.7 (120)
190
381
262
12.07
ASME B16.9
6"
168.3
7.11 ( STD / 40)
229
457
313
10.20
ASME B16.9
6"
168.3
10.97 (XS / 80)
229
457
313
15.40
ASME B16.9
8"
219.1
6.35 (20)
305
610
414
15.90
ASME B16.9
8"
219.1
7.04 (30)
305
610
414
17.86
ASME B16.9
8"
219.1
8.18 (STD / 40)
305
610
414
20.00
ASME B16.9
8"
219.1
10.31 (60)
305
610
414
25.54
ASME B16.9
8"
219.1
12.7 (XS / 80)
305
610
414
31.10
ASME B16.9
10"
273
6.35 (20)
381
762
518
25.00
ASME B16.9
10"
273
7.8 (30)
381
762
518
31.42
ASME B16.9
10"
273
9.27 (STD / 40)
381
762
518
36.23
ASME B16.9
10"
273
12.7 (XS / 60)
381
762
518
49.00
